Nilight 6 PIN DT Connector Kit 3 Sets Size 16 Solid Contacts Waterproof Male Female Terminal for 14-20 AWG DT Series Connectors Car Truck Motorcycle Off-Road Vehicles Boat

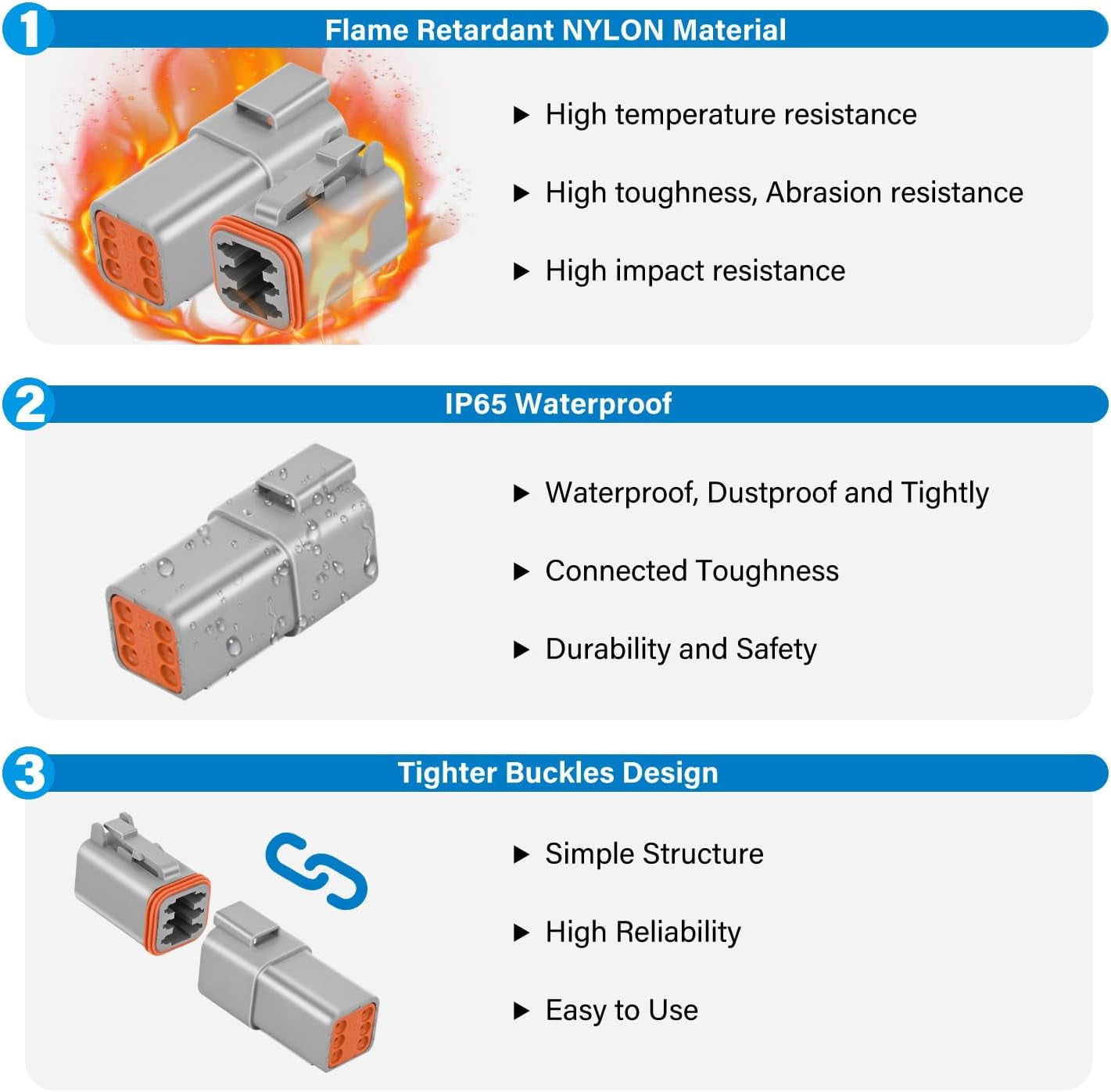

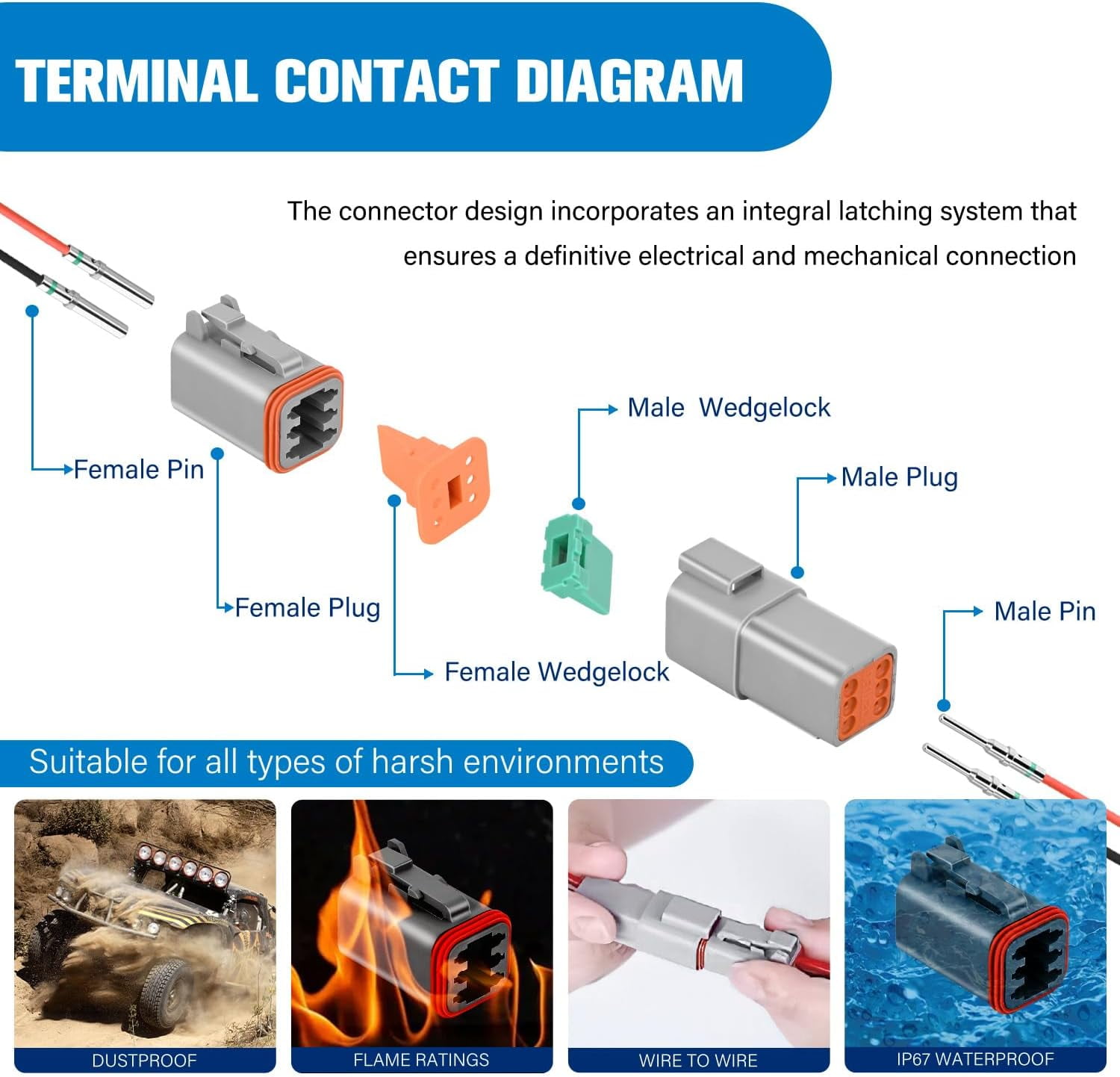

<p><b>Product description</b></p> <ul><li>6 Pin Gray Electrical Wire Connector</li><li>Nilight 6 PIN DT Connectors-3 Sets</li><li>DT series environmentally sealed connectors are designed for cable to cable and cable to board applications. The DT connectors are used in harsh environment applications where even a small degradation in connection may be critical. Thermoplastic housings offer a wide operating temperature range and silicone rear wire and interface seals allow the connectors to withstand conditions of extreme temperature and moisture.</li></ul> <p><b>Features</b></p> <ul><li><b>Sealing Plugs</b>: Sealing plugs prevent the cavity from entering the contaminated connector and maintain the integrity of the seal.</li><li><b>Secondary Wedgelocks</b>: It help confirm proper contact alignment within each connector. Secondary wedgelocks are assembled at the mating interface and press into place.</li><li><b>Snap-on Design</b>: Ensure the contacts are accurately and completely inserted into the housing, easy to use.</li><li><b>IP67 Waterproof</b>: Made of PA66 Nylon, which makes it waterproof to IP67 standard.</li><li><b>Reinforced Flame Retardant</b>: High temperature resistance; Abrasion resistance; High impact resistance. No cracking, chipping or leaking after 20 test cycles from 14°F to +176°F</li><li><b>Superior Material</b>: Crimp Type: 4 indent; Material: Tin Bronze/Nickel plate; We have specially treated the tail barrel to ensure that every crimp will not break.</li></ul> <p><b>6 PIN DT Connector Housings</b></p> <ul><li>Operating Temperature: 14°F to +176°F ((-10°C to 80°C)</li><li>Accept Wire Range: 14-20 AWG (2.50-0.50 mm²)</li></ul> <p><b>Size 16 Contacts</b></p> <ul><li>Contact Size: 16#</li><li>Terminal Transmits: 0 – 24 A (Low Power)</li><li>Material: Tin Bronze/Nickel plate</li><li>Current Rating: 13-Amps</li><li>Accept Wire Range:14-20 AWG</li></ul>

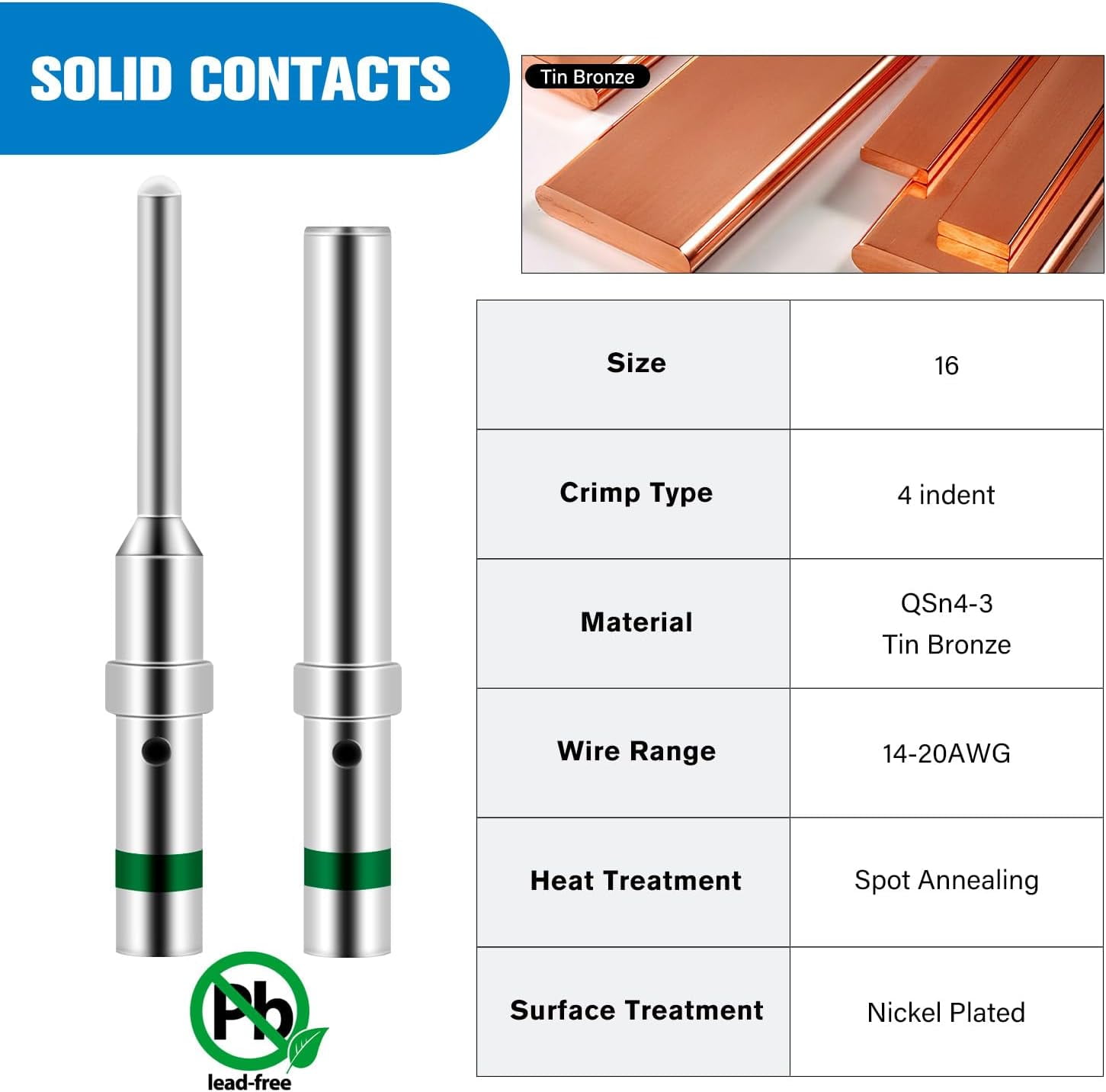

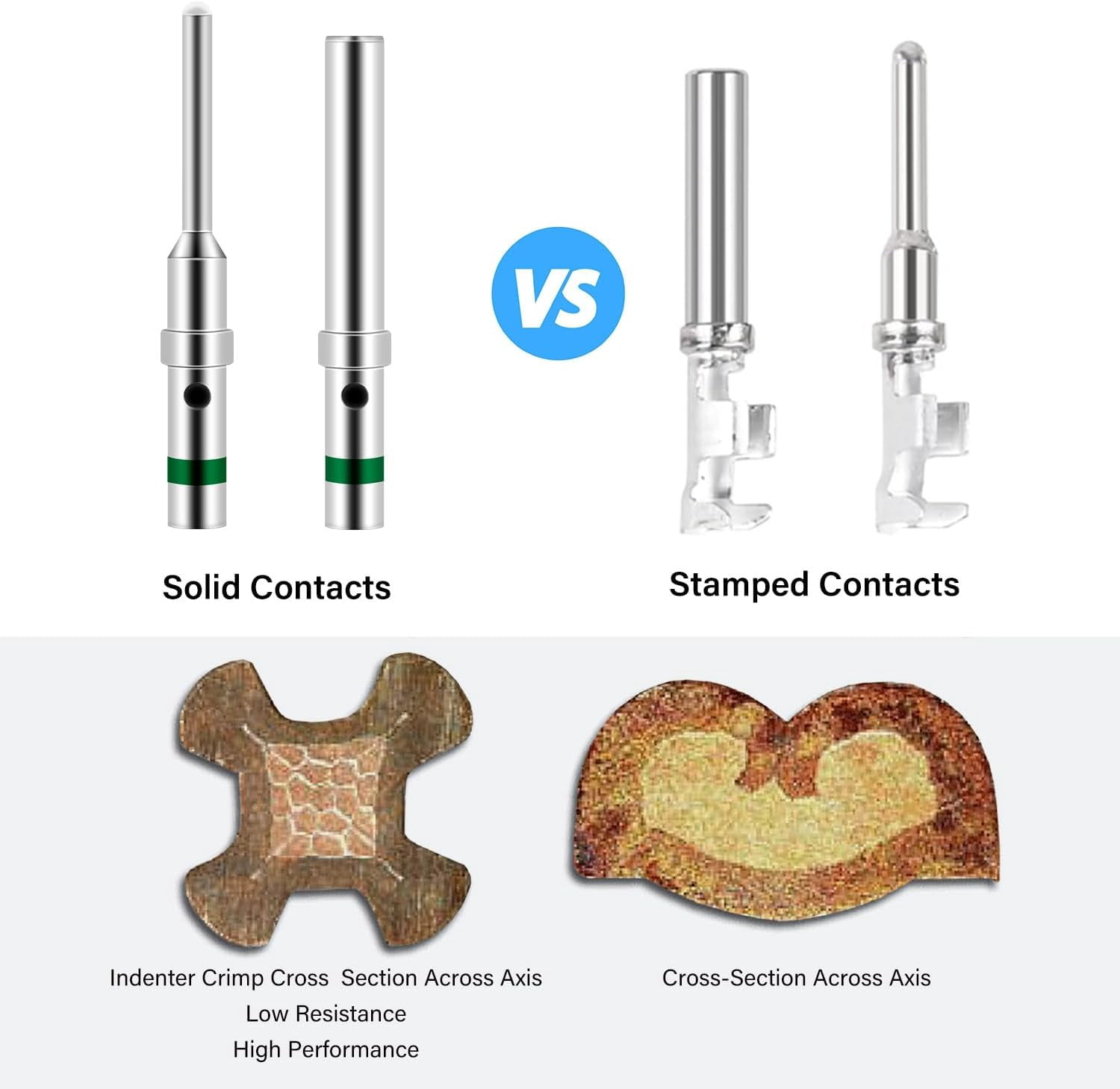

• Size 16 Solid Contact: accepts 14-20 gauge wires. Current Rating: 13 Amps Continuous. IP Rating: IP67. Connector Style: Receptacle.
• 6 Pin DT Connectors: 6-pin electrical wire connectors are resistant to dust, dirt, moisture, salt spray, vibration, contamination, with 100% environmental sealing and highly reliable pin contact that helps eliminate wiring problems. will not lose electronic qualities or leak after installation. Optional in-line, flange or PCB mount.
• Wide Application:DT connectors are by far the most popular connectors used in many automotive, industrial and racing applications. Widely used in truck, car, motorcycle, boat maintenance and DIY projects and other fields.
• High Quality Material: 6 pin male and female connector plugs are made of PA66 nylon & copper (nickel plated), easy to connect and disconnect, suitable for long time use. They won't damage the electronic quality or cause leaks after installation, ensuring dependable electrical performance.

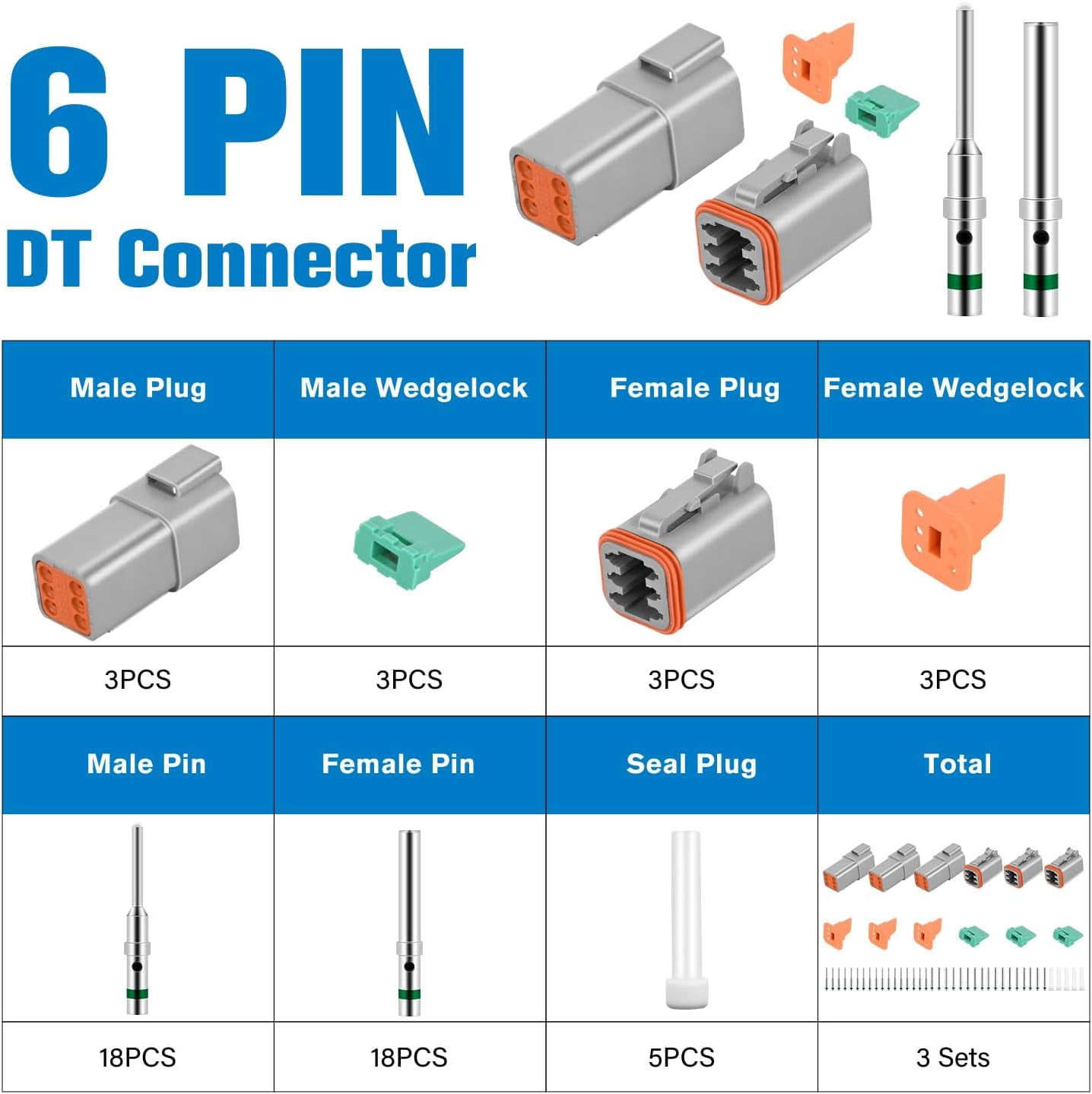

• Package Includes: 3 sets 6-pin connectors(3 pcs male plugs and 3 pcs female plugs), 18 pairs solid terminals(18 pcs pins and 18 pcs sockets), 5 pcs seal plugs.
