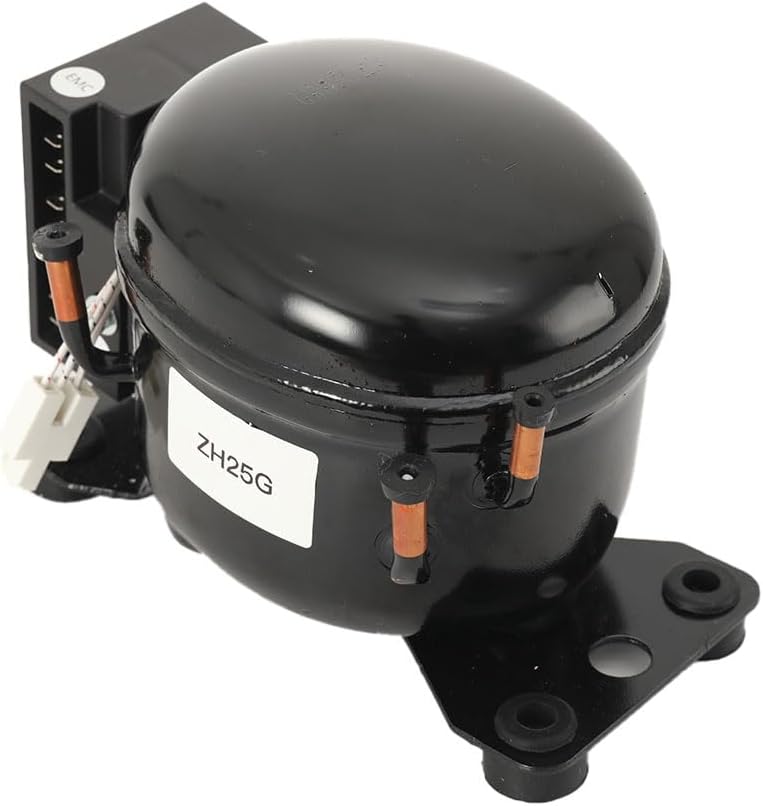

DC 12-24V Car Refrigeration Air Compressor Fridge Freezer Marine Solar with Controller,Max Cooling Capacity:74W /252.5btu,R134 A refrigerant

RPM - W - BTU/H - COP2000 - 45 - 153.5 - 1.252500 - 55 - 187.7 - 1.253000 - 64 - 218.4 - 1.253500 - 74 - 252.5 - 1.25Compressor Model: ZH25GRated Voltage/Frequency: 12-24V (DC)Refrigerant: R134aOperating Back Pressure: Low Back Pressure (L.B.P)Cooling Mode: Natural Cooling/Air-CooledThrottling Device: Capillary TubeMotor Type: BLDCAmbient Temperature: 0～43℃Evaporation Temperature: -35°C to -10°COperating Voltage Range: 9.6–17/21.3–31.5VMaximum Discharge Pressure: 1.86 MPa (abs)Maximum Condensing Temperature: 65°CMaximum Winding Temperature: 130°CMaximum Casing Temperature: 95°CMaximum Discharge Temperature: 120°CStarting Performance: 12/24V [0.5/0.5MPa (abs)]Minimum Casing Pressure Rating: 35barOil Type: Ester OilRefrigerant Oil Grade: RL22HOil charge: 150 ml ± 10 mlSuction pipe diameter (ID): Φ6.2 ± 0.1 mmDischarge pipe diameter (ID): Φ5.0 ± 0.1 mmProcess pipe diameter (ID): Φ6.2 ± 0.1 mmSuction/Process/Discharge pipe material: Copper tubingCompressor noise: ≤40 dB(A)Vibration: 0.6 m/s²Protective Gas: Dry Air 0.2–0.4 bar (Dew Point: -60°C)Residual Impurity Content: ≤50 mgMoisture (including oil): ≤100 mgCompressor Start/Stop Cycles: 200,000 timesPackage Including1 x 12V 24V DC Refrigeration Compressor

• This controller automatically adapts to dual-voltage DC power input systems of 12V and 24V. For 12V DC systems, the maximum input voltage is 17V; for 24V systems, the maximum input voltage is 31.5V.
• The controller operates within an ambient temperature range not exceeding 50°C. If the controller housing temperature becomes excessively high, the compressor will stop to activate over-temperature protection (Recommendation: When ambient temperatures are high, implement forced air cooling for the controller).
• The controller's power input wires connect directly to the battery's positive and negative terminals. The controller's (-) terminal connects to the battery's negative terminal; the controller's (+) terminal connects to the battery's positive terminal. Failure to do so will prevent the controller from functioning properly. The controller features reverse polarity protection.
• The temperature switch is connected to the C and T terminals of the controller. If no resistor is connected between them, the compressor operates at 2000 rpm when the temperature switch closes.
• External Fan: A 12V DC fan can be connected between the controller's (F+) and (F-) terminals. The fan's positive terminal connects to the controller's (F+) terminal, and the negative terminal connects to the controller's (F-) terminal. When the controller's input voltage exceeds 12V, the output voltage between terminals (F+) and (F-) always remains at 12V. Regardless of whether the input voltage system is 12V or 24V, the fan must be a 12V DC fan.
